A weld may look fine from the outside but still have problems that affect its strength, finish, or service life. Cracks, porosity, undercut, poor penetration, and trapped slag are some of the issues welders regularly deal with. Most of these problems come from incorrect settings, poor surface preparation, unsuitable consumables, or an inconsistent welding technique.
Whether you work with a MIG welder, TIG welder, stick welder, or another welding machine, checking the material and equipment before starting can prevent a lot of rework. B & R Australia provides welding and fabrication services for repair, maintenance, structural, and industrial requirements.

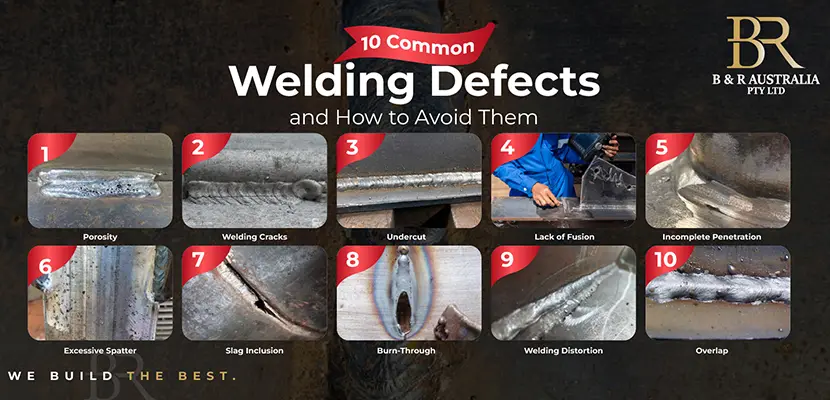

10 Common Welding Defects and How to Avoid Them with MIG, TIG & Stick Welding
Understanding the 10 Common Welding Defects and How to Avoid Them can help welders get cleaner joints and reduce repair work. Correct settings on a MIG welder, TIG welder, stick welder, or other welding machine make a major difference. Proper TIG welding, equipment checks, and an organised welding trolley can also reduce common problems. Keeping up with relevant welding news can help welding professionals stay informed about equipment, standards, and working practices.
1. Porosity
Porosity occurs when gas becomes trapped inside the weld and creates small holes or cavities. Oil, rust, moisture, paint, and poor shielding gas coverage are common causes.
Clean the metal properly before welding. Check the gas flow and keep electrodes and filler materials dry. When using a MIG welder, inspect the gas nozzle and make sure there are no leaks in the gas line.
2. Welding Cracks
Cracks can weaken a welded joint and may continue spreading when the component is placed under stress. Rapid cooling, incorrect filler material, high restraint, and poor joint design can cause cracking.
Select the correct filler metal and control heat input carefully. Preheating may also be required for certain steels and thicker materials.
3. Undercut
Undercut appears as a groove along the edge of the weld. Excessive current, fast travel speed, or an incorrect torch angle can melt away too much base metal.
Lower the current when required and maintain a controlled travel speed. Preventing undercut is particularly important during Structural Steel Welding, where joint strength matters.
4. Lack of Fusion
Lack of fusion occurs when the weld metal does not properly join with the base metal or a previous weld pass.
Low heat input, incorrect electrode position, and surface contamination are common causes. Clean the joint and use enough heat to achieve proper fusion. This is especially important during Stick Welding and heavy steel repair work.
5. Incomplete Penetration
Incomplete penetration happens when weld metal does not reach the root of the joint. Low current, an incorrect root gap, or poor joint preparation can cause the problem.
Prepare the joint correctly before welding. With MIG Welding, adjust voltage and wire feed speed according to the material thickness and joint type.
6. Excessive Spatter
Spatter leaves small droplets of molten metal around the weld area. Incorrect voltage, unstable wire feeding, excessive current, or the wrong polarity may cause it.
Check the welding machine settings before starting. A correctly adjusted MIG welder can produce a cleaner bead and reduce time spent removing spatter.
7. Slag Inclusion
Slag inclusion occurs when slag becomes trapped inside the weld. It commonly happens during multi-pass welding when the previous weld bead has not been cleaned properly.
Remove slag between every pass and maintain the correct electrode angle. This is particularly important when working with a stick welder.
8. Burn-Through
Burn-through occurs when excessive heat creates a hole in the base material. Thin sheet metal is particularly vulnerable.
Reduce amperage, control travel speed, and use suitable backing where required. A TIG welder gives the operator precise heat control, making TIG welding useful for many thin-metal applications.
9. Welding Distortion
Metal expands when heated and contracts as it cools. Uneven heating can cause the finished component to bend, twist, or move out of alignment.
Use clamps, tack welds, balanced welding sequences, and controlled heat input. Distortion control is important during Metal Fabrication and Aluminium Fabrication, especially where accurate dimensions are required.
10. Overlap
Overlap happens when weld metal flows onto the base metal without properly fusing with it. Slow travel speed, an incorrect torch angle, or excessive filler material may cause the problem.
Maintain steady movement and watch the weld pool carefully. Adjust amperage, travel speed, and torch position according to the joint.
Welding Services for Repair, Fabrication and Maintenance Work
Different jobs require different welding and metalworking methods. Stick Welding works well for many outdoor jobs and heavy repairs, while MIG Welding is widely used for fabrication and production work. TIG Welding offers greater control where a clean, accurate weld is required.
B & R Australia also handles related work such as Air Arc Gouging, which can remove damaged or unwanted weld metal before repairs. Hard Facing Repair can help restore worn surfaces on industrial components, while Oxy Cutting Services can be used for cutting and preparing steel.
Projects may also require Mobile Welding when equipment cannot easily be moved from site. Material Welding, Metal Fabrication, Structural Steel Welding, and Aluminium Fabrication cover different materials and project requirements.
For industrial sites, Fixed Plant / Shutdown / 24-7 Maintenance can help address planned maintenance, urgent repairs, and plant welding requirements.
Simple Ways to Prevent Welding Defects
Good preparation prevents many common welding problems. Before starting:
- Clean rust, grease, moisture, paint, and scale from the welding area.
- Check the welding machine, cables, earth clamp, torch, and gas supply.
- Select the correct electrode, wire, or filler material.
- Match amperage and voltage to the material thickness.
- Maintain a steady torch or electrode angle.
- Clean the weld between passes.
- Inspect completed welds before putting components into service.
A well-organised welding trolley can also keep welding equipment and consumables close at hand. Welders can follow reputable welding news and industry updates to stay aware of changes in equipment, safety requirements, and welding practices.
FAQs
What are the most common welding defects?
Common defects include porosity, cracks, undercut, lack of fusion, incomplete penetration, spatter, slag inclusion, burn-through, distortion, and overlap.
What causes porosity in welding?
Dirty metal, moisture, poor gas coverage, and contaminated consumables commonly cause porosity.
How can MIG welding defects be reduced?
Use clean material, correct voltage and wire speed, steady gas flow, and the right torch position.
Why do cracks appear after welding?
Cracks may develop because of rapid cooling, high stress, incorrect filler material, or poor heat control.
Can defective welds be repaired?
Many defective welds can be removed and rewelded after identifying and correcting the original cause.
